Navigating Pantograph ​

Pantograph offers intuitive scrolling (by dragging) and zooming (by mouse wheel) within each loaded zoom level.

Zoom levels ​

The user can switch between zoom levels with the "Bin width" dropdown in the toolbar, or with right-clicking on any column and selecting "Zoom in" or "Zoom out". This will change to the next available zoom levels (e.g. from 1 to 10).

TIP

If a column is highlighted (i.e. right-click selected), changing to an arbitrary zoom level via the dropdown menu in the toolbar will center and highlight that position in the new zoom level as well. This way, the user can better follow the current position after a zoom level change.

Navigate to positions and genes ​

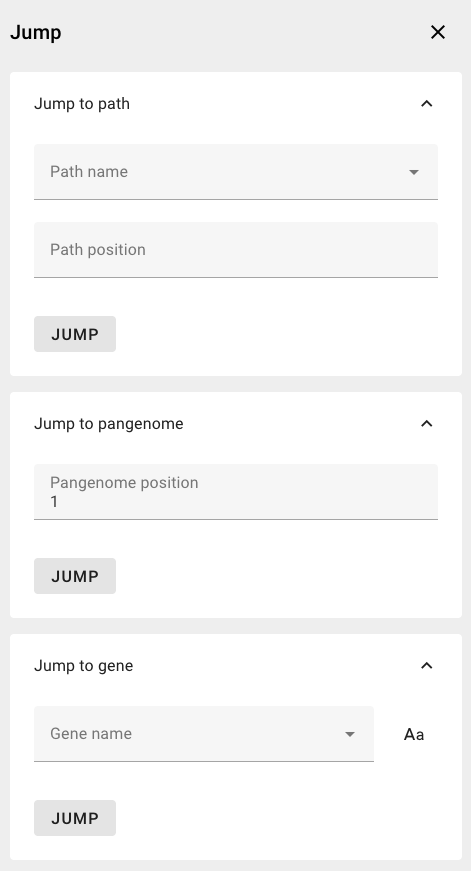

The jump menu in the toolbar allows to quickly navigate to path-specific positions, to gene locations, or to a pangenome region.

Navigation Menu

  1. Navigate to path-specific coordinates
    Specifying a path and a position on that path will navigate to the exact position
  2. Navigate to a position in the pangenome sequence
  3. Navigate to the start bin of a gene
    Please note: For clarity, if the current bin width is larger than 100, the bin width is automatically set to 100.

Links can be followed to their other end in lower zoom levels by right clicking on them and selecting "Follow link". The pangenome region of the other end is loaded and the bin is highlighted where the path continues in the tracks that follow this link.

User Interaction ​

Sorting Tracks ​

There are following possibilities to sort tracks:

  1. by genetic variation of the graph tracks or variant tracks in a single column:
    Right click on the column to sort by and select "Sort graph paths" or "Sort variant tracks".
  2. by any meta data (numeric or categorical; automatically detected):
    Select the meta data category in the main menu "Sorting", or click on the little arrow to the top of the meta data column (shows up on mouse over). Repeated clicking will toggle between ascending/descending sort order.
  3. by path name (alphabetically):
    Select "name" in the "Sorting" dropdown in the toolbar, or click on the little sorting arrow on top of the path names (shows up on mouse over).

Right-click Menu ​

Right-clicking on any column highlights it and opens the right click menu with the following options:

  1. Sort graph paths
    The graph tracks get sorted by the coverage values in the highlighted column.
  2. Sort variant tracks
    The variant tracks get sorted by their genotyping values in the highlighted column. If more than one variant is present in a column, the tracks get sorted by the first variant.
  3. Zoom in/out
    The immediate next higher or lower zoom level, if available, is loaded, centering at the highlighted column.
  4. Follow Link (only shown at link columns)
    The view navigates to the other end of the link in the pangenome graph, highlighting the immediate next sequence column according to the traversal through the graph.

Tooltips ​

Tooltips over graph tracks denote the track name and the fraction of present bases in the given column (window of the pangenome sequence) of the path (between 0 and 1), shorthand: "Cov.:". At inverted columns, the fraction of inverted bases from the whole window is additionally indicated ("Inv."). If all bases in the window are inverted, Cov and Inv values are equal.

Tooltips over genic regions additionally indicate the gene name (retrieved from the "ID" field of gff3 files), the strand, and the exon number.

Tooltips over variant tracks indicate the track name, the reference and position of a variant and genotype and allele information. If more than 5 variants are within the bin, only the number of variants is displayed.
